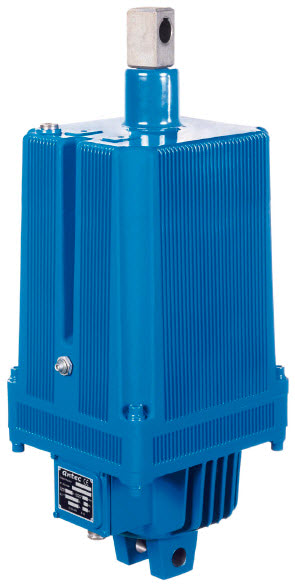

TH-III-2006
Electrohydraulic Thruster
The TH-III is an electrohydraulic thruster by Antec.
Thrusters are commonly used on thruster brakes. Thruster brakes are fail-safe, meaning they are spring applied and use a thruster to release the brake.
Thrusters work as follows: when supplied power, the thruster piston rod extends and the brake is released. If the thruster is turned off or power is lost, the piston rod retracts and the spring engages the brake.
Because of their unmatched safety and reliability, we use thruster disc and drum brakes in our industrial braking systems. Antec thrusters are particularly well suited for use in applications with high duty cycle requirements.
We provide comprehensive support for Antec thrusters. We stock commonly used Antec models, provide warrantied repair services, and provide full engineering and technical support.
Product Specifications
| Name | TH-III-2006 |
|---|---|
| A (mm) | 25 |
| B (mm) | 25 |
| C (mm) | 240 |
| D (mm) | 40 |
| E (mm) | 25 |
| F (mm) | 40 |
| G (mm) | 90 |
| H (mm) | 645 |
| I (mm) | 117 |
| J (mm) | 35 |
| K (mm) | 120 |
| L (mm) | 140 |
| M (mm) | 71 |
| N (mm) | 73 |
| O (mm) | 25 |
| P (mm) | 25 |
| Nominal Force (N) | 2000 |
| Nominal Stroke (mm) | 60 |
| Standard Current Consumption 400V 50Hz (A) | 1.2 |
| Oil Volume (L) | 10 |
| Weight With Oil (kg) | 45 |
| Dustguard | YES |
