CB8-P-50-400
Industrial Disc Brake

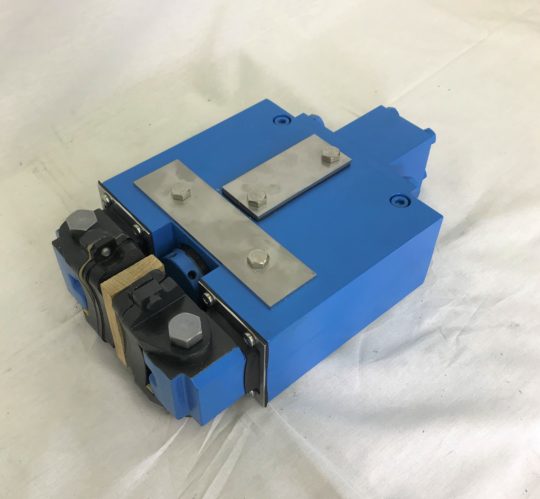

The CB8-P is a spring applied, pneumatically released, heavy duty industrial compact disc brake.
A primary advantage of this industrial brake is its compact design, which makes it suitable for use in situations where space is limited and relatively high torque output is required.
Hindon provides comprehensive customer support for the CB8-P, including repair services.
Product Specifications
| Name | CB8-P-50-400 |
|---|---|
| Type | Disc |
| Actuation | Pneumatically Released |

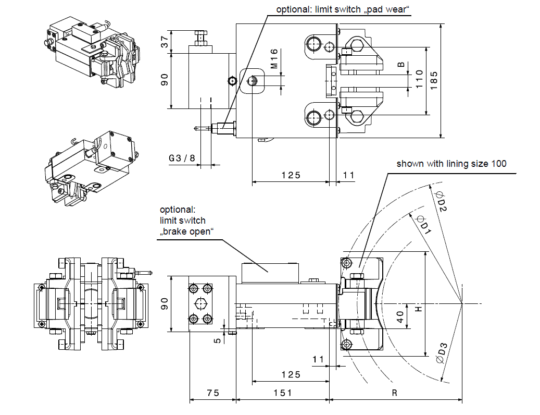

| øD2 - Disc Diameter (mm) | 400 |
| Torque Max. (N-m) | 700 |
| Torque Min. (N-m) | 180 |
| øD1 (mm) | 354 |
| øD3 (mm) | 290 |
| R (mm) | 219.5 |
| H (mm) | 130 |
| Weight (kg) | 26 |
| Linings | Organic (Sinter optional) |
| Friction Coefficient | 0.4 |
| Pneumatic Cylinder Release Pressure (bar) | 6 |
| Pneumatic Cylinder Piston Diameter (mm) | 80 |
| Pneumatic Cylinder Max Stroke (mm) | 13 |
| Options | Manual Release; Sensors "Open" and "Pad Wear Limit" |
