DBF 320.6 2500mm
Industrial Disc Brake

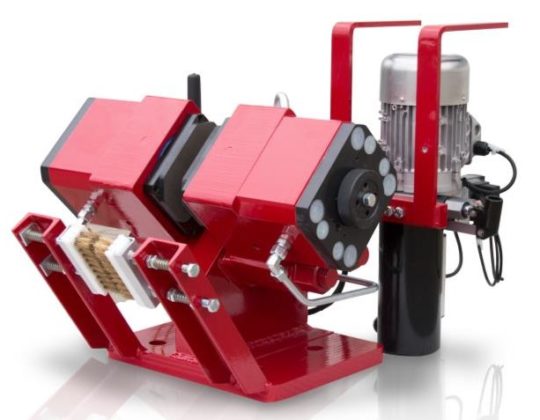

The DBF 320 is a spring applied, hydraulically released, heavy-duty industrial fixed caliper disc brake.
Advantages of this industrial brake include its fast response time, its very high max torque output, and its adjustable air-gap, which allows you to fine-tune your braking process by providing adjustable torque output. Its high temperature load capacity also makes it a great brake for high torque emergency stops.
When compared to a comparable floating caliper brake, fixed caliper brakes like the DBF are ideal for applications with minimal space constraints. In situations where lateral space is limited, consider a comparable floating caliper model, like the DBF S product line.
Traditionally, the DBF is commonly used on large hoists and cranes in ports, steel mills, and mining applications, but it is highly versatile and can be used as a safety or emergency brake in a wide range of demanding applications.
Hindon provides comprehensive service and support for DBF brakes, including technical/application engineering, as well as repair services.
Click here to learn more about our full line of industrial brakes.
Product Specifications
| Name | DBF 320.6 2500mm |
|---|---|
| Type | Disc |
| Actuation | Hydraulically Released |

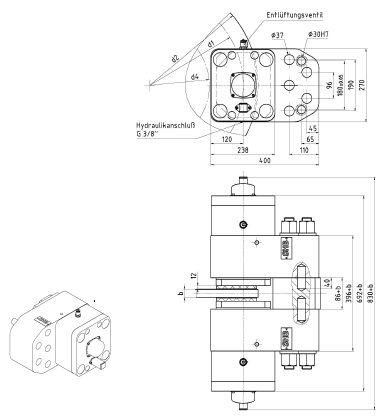

| d2 - Disc Diameter (mm) | 2500 |
| Torque Max. (N-m) | 305920 |
| Torque Min. (N-m) | 277240 |
| Fa - Clamping Force at c = 1mm (N) | n/a |
| Fa - Clamping Force at c = 2mm (N) | 320000 |
| Fa - Clamping Force at c = 3mm (N) | 290000 |
| Release Pressure (bar) | 235 |
| Tightening Torque (N-m) | 10.9 - 3300 |
| d1 - Friction Diameter (mm) | 2390 |
| d4 - Hub Outside Diameter (mm) | 2140 |
| Friction Coefficient | 0.4 |
| Air Gap - Adjustable (mm) | 1-3 |
| Release Time (s) | 1-2.5 |
| Theoretical Resetting Time (s) | ~0.2 |
| Pad Surface (cm2) | 315 |
| Maximum Pressure (bar) | 250 |
| Oil Volume (l) | 0.54 |
| Oil Volume at 2mm Working Stroke (l) | 0.09 |
| Screw Size | M36 - 8.8/10.9 |
| Pipe Dimensions | G 3/8"; Pipe ø 12mm x 1.5mm thick |
| Ambient Temperature (degrees C) | -20 to 60 |
| Weight (kg) | 365 |
