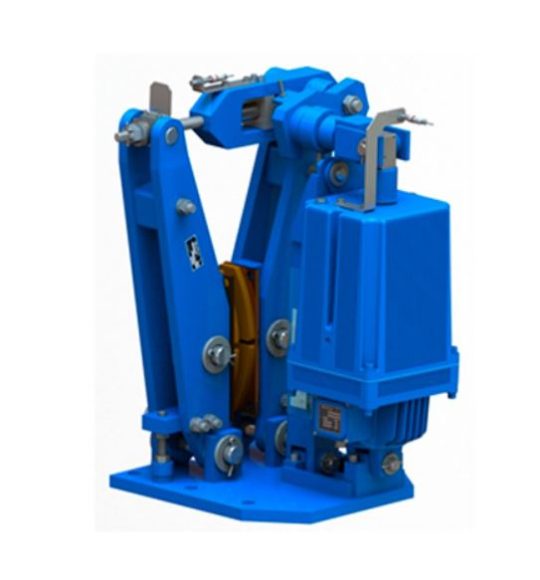

FBT-34/800/TH-II-2006
Industrial Disc Brake
The FBT-34 disc brake is a large, spring applied, electrohydraulic thruster released, heavy duty industrial disc brake.
Advantages of this industrial brake include its higher torque capacity, stainless steel pins, and asbestos free brake linings.
This thruster brake is often used as a service brake in a wide range of industries including on container crane main hoists, large overland or downhill conveyors, and in steel rolling mills.
Product Specifications
| Name | FBT-34/800/TH-II-2006 |
|---|---|
| Type | Disc |
| Actuation | Electrohydraulic Thruster Released |
| øD2 - Disc Diameter (mm) | 800 |
| Thruster | TH-II-2006 |
| Torque Max (N-m) | 9030 |

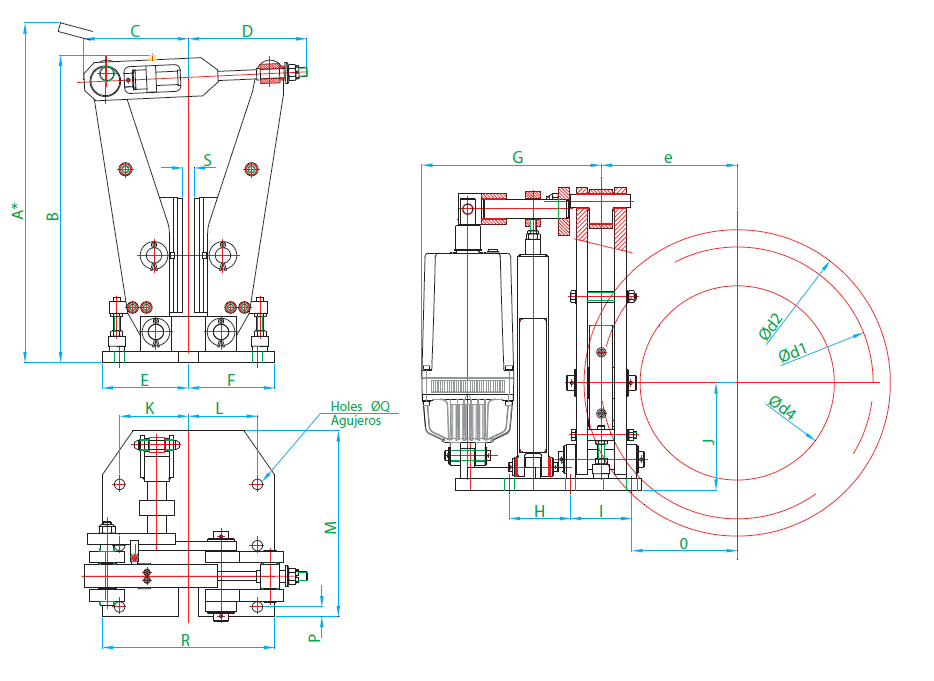

| A* (mm) | 1130 |
| B (mm) | 830 |
| C (mm) | 278 |
| D (mm) | 314 |
| E (mm) | 225 |
| F (mm) | 225 |
| G (mm) | 475 |
| I (mm) | 160 |
| K (mm) | 180 |
| L (mm) | 180 |
| M (mm) | 485 |
| P (mm) | 25 |
| Q (mm) | 27 |
| R (mm) | 450 |
| Weight (Kg) | 200 |
| S (mm) | 30 |
| d1 (mm) | 710 |
| d4 (mm) | 520 |
| e (mm) | 350 |
| J (mm) | 280 |
| O (mm) | 270 |
| Friction Coefficient | 0.4 |
