SHI 201 2800mm
Industrial Disc Brake

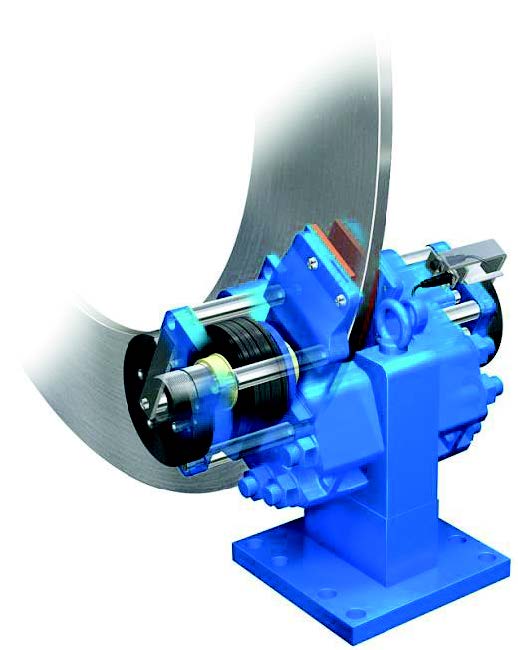

The SHI disc brake is a spring applied, hydraulically released, heavy duty industrial fixed caliper disc brake.
Advantages of this industrial brake include its fast response time, its high torque output, and its ability to produce a range of torque values with its externally adjustable air-gap.
This hydraulic disc brake is used primarily in holding and emergency stop applications. As a safety brake, it is installed and designed for braking on the output shaft.
Product Specifications
| Name | SHI 201 2800mm |
|---|---|
| Type | Disc |
| Actuation | Hydraulically Released |
| d - Disc Diameter (mm) | 2800 |
| Torque Max. (N-m) | 182240 |
| Torque Min. (N-m) | 160800 |
| Fa - Clamping Force at c = 1mm (N) | 170000 |
| Fa - Clamping Force at c = 2mm (N) | 160000 |
| Fa - Clamping Force at c = 3mm (N) | 150000 |
| Pl - Release Pressure (bar) | 105 |
| Pmax - Max Pressure (bar) | 160 |
| Vmax - Volume at c=2.0mm (ltr) | 0.071 |
| Weight (kg) | 300 |

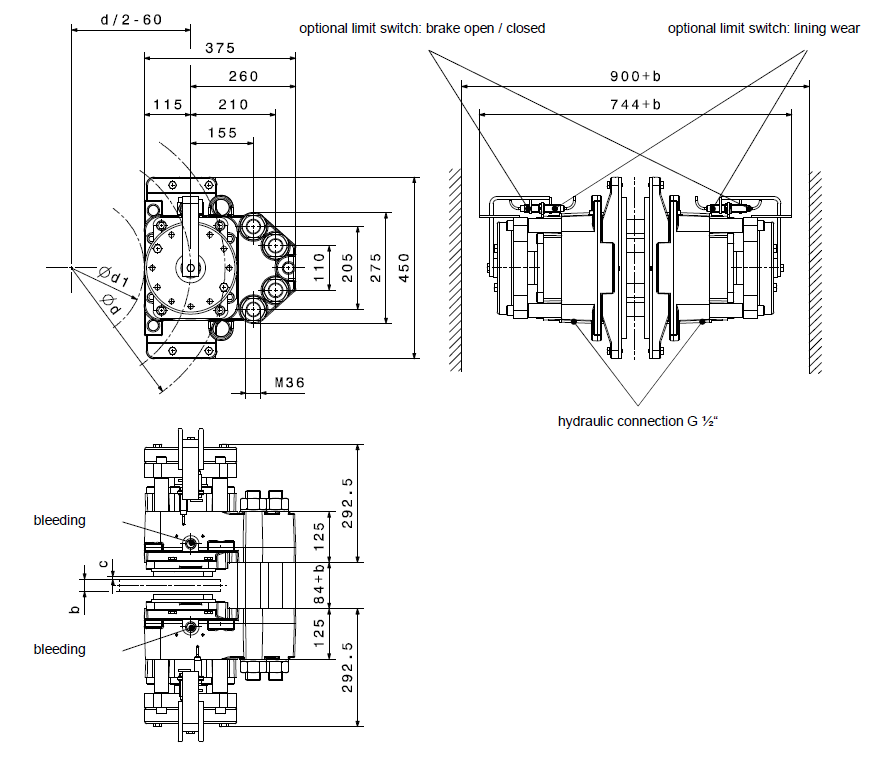

| Mounting Studs | 4, M36, 12.9 |
| Ma - Fastening Torque (N-m) | 4280 at μ=0.14 |
| Linings | Sinter |
| Friction Coefficient | 0.4 |
