TEXU 800-E
Industrial Disc Brake
TEXU 800-E Series TEXU spring applied twin caliper, fail safe disc brake generates zero overhung load or shaft bending movement.
Product Specifications
| Name | TEXU 800-E |
|---|---|
| Type | Disc |
| Actuation | Electrohydraulic Thruster Released |
| Weight | 830 kg |
| Brake Torque min. (N-m) | 12500 |
| Brake Torque max. (N-m) | 27000 |
| Torque | 12500 to 27000 N-m |

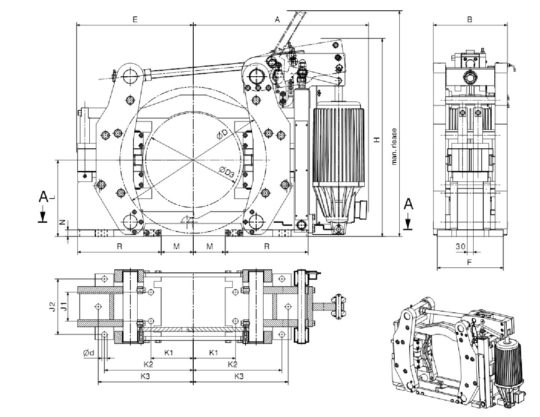

| D - Diameter | 800 mm |
| D2 - Outer Disc Diameter2 | 800 |
| D3 - Diameter | 530 mm |
| A | 905 mm |
| B | 360 mm |
| E | 605 mm |
| F | 330 mm |
| H | 1270 mm |
| J1 | 135 mm |
| J2 | 270 mm |
| K1 | 240 mm |
| K2 | 475 mm |
| K3 | 505 mm |
| L | 550 mm |
| M | 150 mm |
| N | 36 mm |
| R | 455 mm |
