USB3-5 – 400×30
Industrial Disc Brake
USB3-5 – 400×30 Series USB torque thruster disc brake is spring applied and offers automatic lining wear compensation and an externally adjustable braking torque.
Product Specifications
| Name | USB3-5 – 400×30 |
|---|---|
| Type | Disc |
| Actuation | Electrohydraulic Thruster Released |
| Brake Torque min. (N-m) | 610 |
| Brake Torque max. (N-m) | 1230 |
| Brake Torque (N-m) | 610 to 1230 N·m |
| Thruster Type | Ebc 100/30 |
| Weight approx. (without thruster) | 48 kg |
| Weight of Thruster | 10 kg |

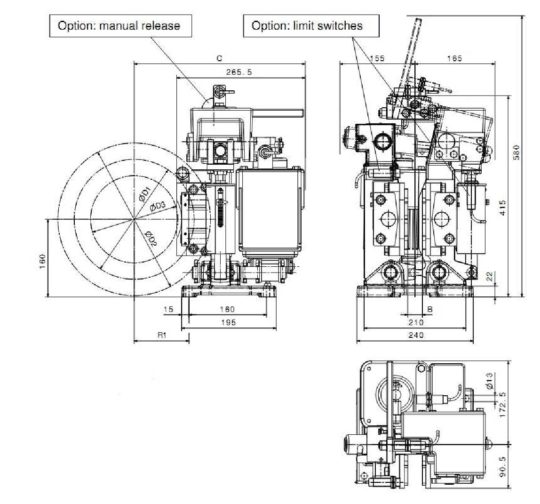

| D - Outer Disc Diameter1 | 400 mm |
| D1 - Theoretical Friction Diameter | 332.5 mm |
| D2 - Max. Possible Coupling or Hub Diameter | 265 mm |
| C | 395 mm |
| R1 | 155 mm |
