USB5-V/800/400/8
Industrial Disc Brake
The USB5 disc brake is a spring applied, electrohydraulic thruster released, heavy duty industrial disc brake.
Advantages of this industrial brake include its robust design and externally adjustable braking torque.
This thruster brake is often used as a service or emergency brake in applications with high circumferential speed and high duty cycles.
Product Specifications
| Name | USB5-V/800/400/8 |
|---|---|
| Type | Disc |
| Actuation | Electrohydraulic Thruster Released |

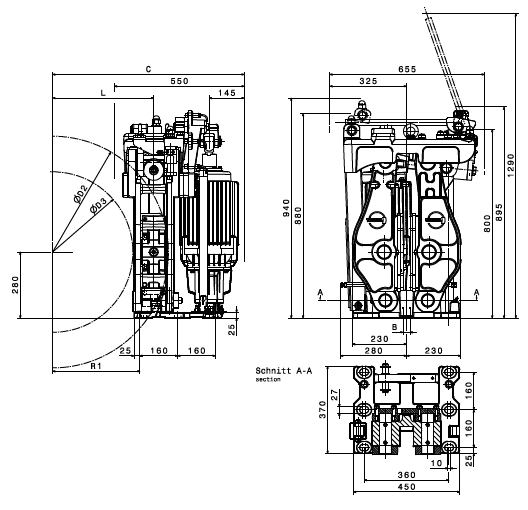

| D2 - Disc Diameter (mm) | 800 |
| Thruster | ED 400/8 |
| Torque Max. (N-m) | 21000 |
| Torque Min. (N-m) | 10500 |
| D3 - Max Coupling or Hub-ø (mm) | 535 |
| R1 (mm) | 480 |
| C (mm) | 705 |
| B - Disc Width (mm) | 30 |
| L (mm) | 538.5 |
| Linings | Sintered |
| Friction Coefficient | 0.4 |
| Weight without Thruster (kg) | 285 |
| Options | High/Low Temperature; Manual Release; Inductive Sensors for "Brake Open" "Brake Closed" "Pad Wear"; Temperature Sensor for Brake Linings; Load Cell for Monitoring Clamping Force |
