NAT/30”/III-2006
Thruster Drum Brake

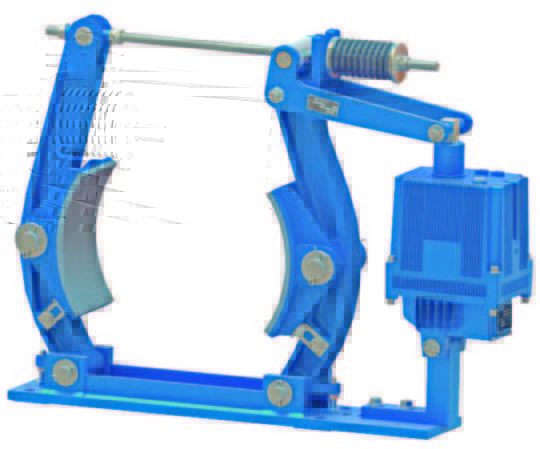

The NAT is a spring applied, electrohydraulic thruster released, industrial drum brake.
This thruster drum brake fits brake drums with dimensions in imperial units (inches) and is designed according to steel mill standards (AISE Standard No. 11). Because of this, the NAT brake is an ideal “bolt-in” replacement for many older steel mill brakes. Braking torque is adjustable, enabling fine tuning when upgrading an existing braking system.
Hindon provides full support for NAT brakes including repair services and full engineering, technical, and application support.
We also support, stock, and repair the TH-III-2006 thruster used to actuate this brake.
Click here to learn more about our full line of industrial brakes used in our industrial braking systems.
Product Specifications
| Name | NAT/30”/III-2006 |
|---|---|
| Type | Drum |
| Actuation | Electrohydraulic Thruster Released |
| D1 | 30 |
| Thruster | III-2006 |
| TQMin (N-m) | 3125 |
| TQMax (N-m) | 6250 |
| Weight (Kg) | 332 |

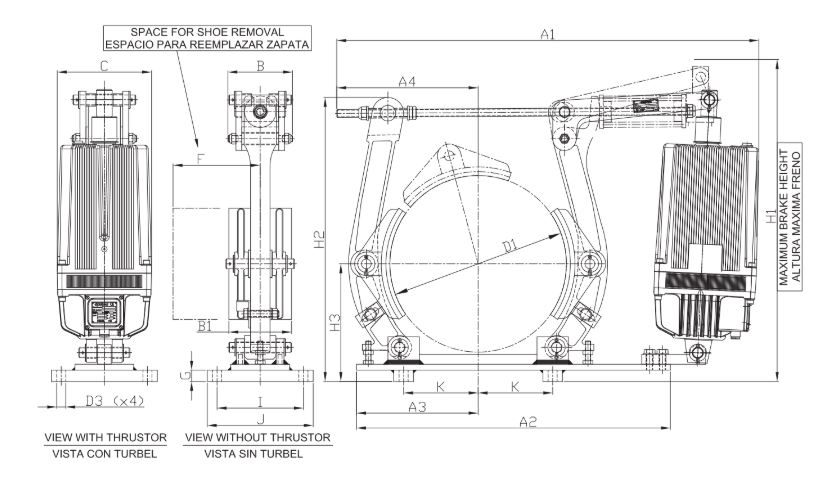

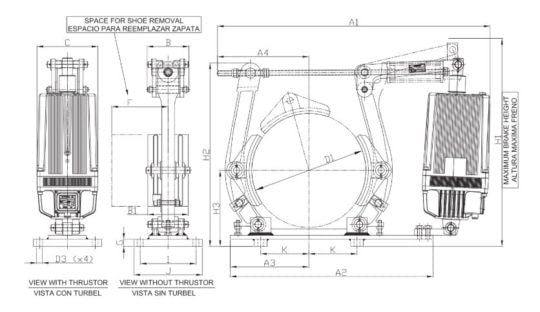

| B2 (mm) | 362 |
| B1 (mm) | 356 |
| D1 (mm) | 762 |
| D3 (mm) | 39.5 |
| H3 (mm) | 527 |
| I (mm) | 482 |
| K (mm) | 381 |
| A1 (mm) | 1430 |
| A2 (mm) | 1280 |
| A3 (mm) | 510 |
| A4 (mm) | 520 |
| B (mm) | 250 |
| C (mm) | 240 |
| F (mm) | 330 |
| G (mm) | 48 |
| H1 (mm) | 1145 |
| H2 (mm) | 1121 |
| J (mm) | 560 |
| Friction Coefficient | 0.4 |
