NDTV/630/III-3006

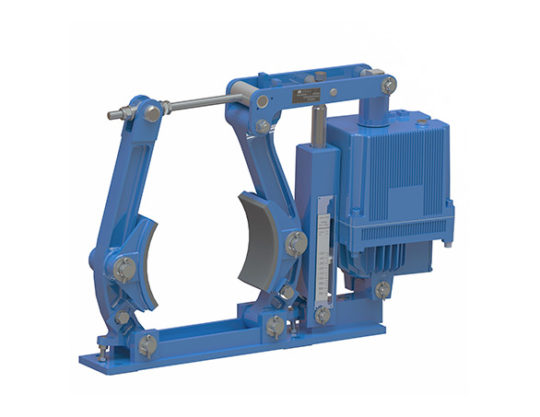

Industrial Drum Brake
The NDTV is a spring applied, electrohydraulic thruster released, industrial drum brake designed to the DIN 15435 specification.
This thruster drum brake is a foot mounted brake for use on metric brake drums with an externally adjustable vertical torque spring with readable scale in newton meters.
Often installed between the motor and the gearbox, this brake is typically used as in e-stops and as a holding brake in a variety of industrial applications.
Hindon provides full support for NDTV brakes including repair services and full engineering and technical support. We also support, stock, and repair the TH-III-3006 thruster used to actuate this brake.

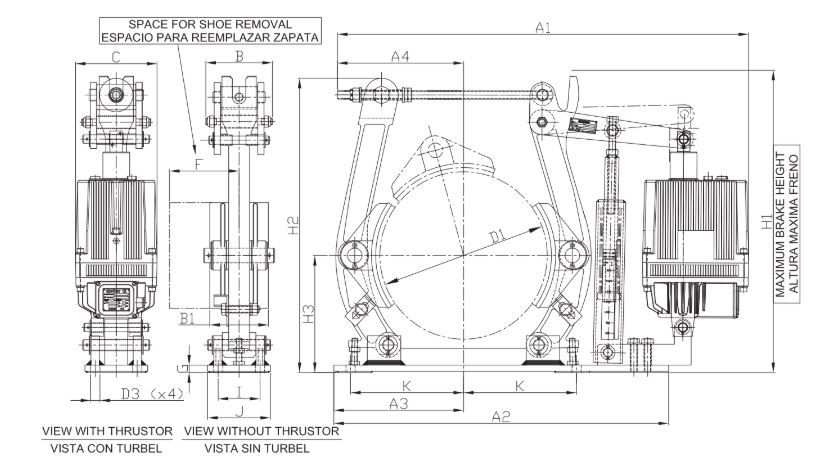

Product Specifications
| Name | NDTV/630/III-3006 |
|---|---|
| Type | Drum |
| Actuation | Electrohydraulic Thruster Released |
| D1 (mm) | 630 |
| Thruster | III-3006 |
| TQMin (N-m) | 3725 |
| TQMax (N-m) | 7450 |
| Weight (Kg) | 244 |
| B2 (mm) | 236 |
| B1 (mm) | 225 |
| D3 (mm) | 27 |
| H3 (mm) | 420 |
| I (mm) | 170 |
| K (mm) | 400 |
| A1 (mm) | 1240 |
| A2 (mm) | 1150 |
| A3 (mm) | 460 |
| A4 (mm) | 435 |
| B (mm) | 230 |
| C (mm) | 240 |
| F (mm) | 305 |
| G (mm) | 23 |
| H1 (mm) | 955 |
| H2 (mm) | 940 |
| J (mm) | 220 |
| Friction Coefficient | 0.4 |
