Thi 630/70
Industrial Drum Brake
Thi 630/70, THi Drum Brakes, fail-safe, hydraulic released
Product Specifications
| Name | Thi 630/70 |
|---|---|
| Type | Drum |
| Actuation | Hydraulically Released |
| Weight | 206 kg |
| Brake Torque min. (N-m) | 500 |
| Brake Torque max. (N-m) | 8200 |
| Torque Range | 500 to 8200 N·m |
| Brake Type | THi 630 |
| Requested Pressure | 70 bar |
| Necessary Volume Flow | 8 L/min |

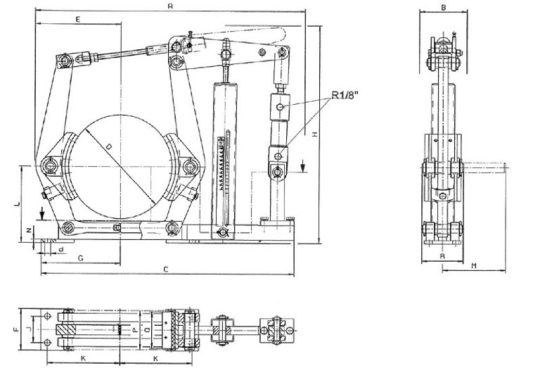

| D2 - Outer Disc Diameter2 | 630 |
| A | 1260 mm |
| B | 240 mm |
| C | 1190 mm |
| D | 630 mm |
| E | 465 mm |
| F | 250 mm |
| G | 440 mm |
| H | 1000 mm |
| J2 | 170 mm |
| K2 | 400 mm |
| L | 420 mm |
| M | 295 mm |
| N | 15 mm |
| P | 236 mm |
| Q | 225 mm |
| R | 244 mm |
| Compensator Option |
|
