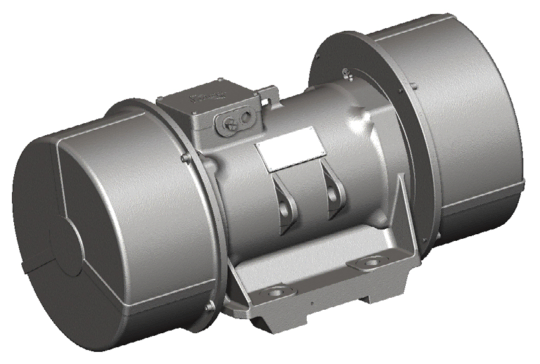

IBL 40-40/2
Alternative Foot Pattern – IBL Series
Alternate foot pattern rotary electric vibrator by Invicta Vibrators. Designed to match MSVI 36-8240, MM36-8240, and VV55N/2 bolt patterns providing convenient interchangeability.
This 2 pole industrial vibrator operates at 3600 RPM (nominal) in a 60 Hz Environment.
Due to its high operating speed and larger frame size, this model is often used on heavy duty compaction tables that are designed for settling materials or palletizing, for instance in agriculture and food industries.
Product Specifications
| Name | IBL 40-40/2 |
|---|---|
| Type | Industrial Electric |
| Product Series | IBL |
| Mount | Base Mounted |
| Speed | 2 Pole / 3456 RPM - 60Hz |
| Weight (lbs) | 226.6 |
| Centrifugal Force (lbs) | 8800 |
| Working Moment (in·lb - (x2)) | 52.1 |
| Input Watts | 1875 |
| Output Watts | 1500 |
| Full Load Current at 460V, 60Hz (A) | 2.5 |
| Starting Current at 460V, 60Hz (A) | 31 |
| H.P. | 2.01 |

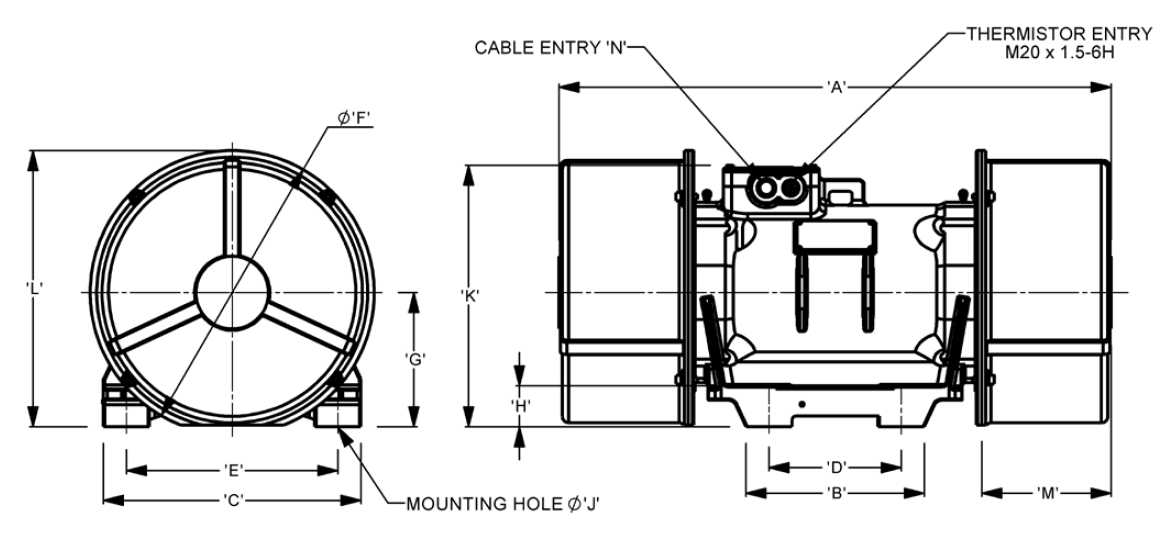

| A (in) | 23.54 |
| B (in) | 9.45 |
| C (in) | 13.39 |
| D (in) | 6.10 |
| E (in) | 10.04 |
| F (in) | 14.13 |
| G (in) | 6.69 |
| H (in) | 2.36 |
| J (in) | 4 x 1.024 |
| K (in) | 12.83 |
| L (in) | 13.74 |
| M (in) | 5.75 |
| N | M20x1.5-6H |
