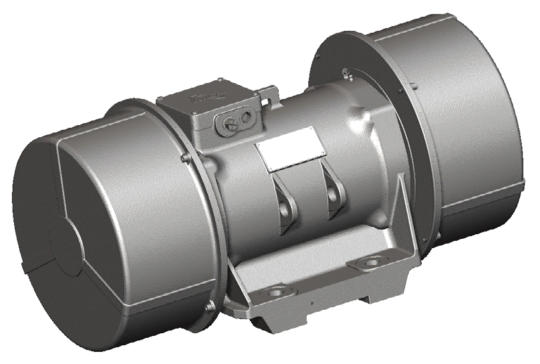

IBL 60-70/8
Alternative Foot Pattern – IBL Series
Alternate foot pattern rotary electric vibrator by Invicta Vibrators. Designed to match MVSI 9-14500 and VV74B/8 bolt pattern providing convenient interchangeability.
This 8 pole industrial vibrator operates at 900 RPM (nominal) in a 60 Hz Environment.
This low operating speed model is ideal for use in applications that require larger stroke such as pan feeders and large aperture screens in the aggregate, mining, and metals recycling industries. Also, due to its ability to produce a large stroke, this model is often used in fluid bed dryers in the food industry.
Product Specifications
| Name | IBL 60-70/8 |
|---|---|
| Type | Industrial Electric |
| Product Series | IBL |
| Mount | Base Mounted |
| Speed | 8 Pole / 864 RPM - 60Hz |
| Weight (lbs) | 943.8 |
| Centrifugal Force (lbs) | 15400 |
| Working Moment (in·lb - (x2)) | 1452.1 |
| Input Watts | 5645 |
| Output Watts | 4900 |
| Full Load Current at 460V, 60Hz (A) | 12.1 |
| Starting Current at 460V, 60Hz (A) | 85 |
| H.P. | 6.57 |

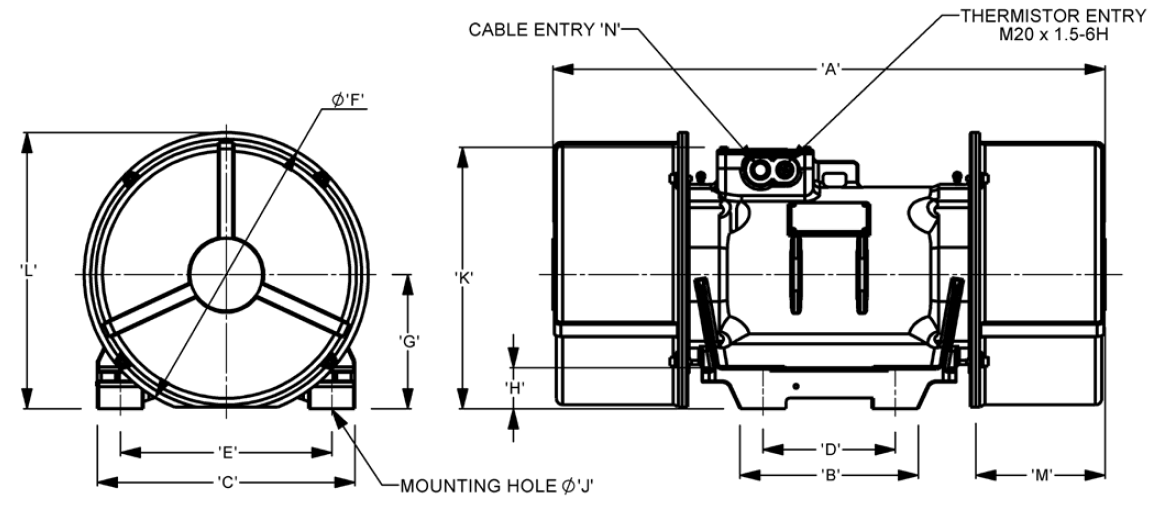

| A (in) | 33.31 |
| B (in) | 12.60 |
| C (in) | 18.11 |
| D (in) | 9.84 |
| E (in) | 14.96 |
| F (in) | 19.29 |
| G (in) | 9.21 |
| H (in) | 2.76 |
| J (in) | 6 x 1.535 |
| K (in) | 18.90 |
| L (in) | 18.90 |
| M (in) | 7.40 |
| N | M32x1.5-6H |
