Thruster brakes are fail-safe brakes that are spring applied and use an electrohydraulic thruster to hold the brake open. When supplied power, the thruster piston rod extends and the brake is released. If the thruster is turned off or power is lost, the piston rod retracts and the spring engages the brake.

We use both thruster disc and drum brakes in our industrial braking systems and provide comprehensive repair services for various types of thruster brakes.

In addition to offering and supporting various types of thruster brakes, we also provide comprehensive support for electrohydraulic thrusters. We stock commonly used thruster models, repair thrusters, and provide engineering and technical support.

Advantages:

Thruster brakes are ideal for service applications with high duty cycles, as you can’t beat the reliability and longevity of an electrohydraulic thruster. Thruster brakes also provide wide-ranging torque adjustability, which enables fine tuning of the stopping process. Thrusters can also be equipped with an adjustable passive time delay that allows adjustment of closing time, preventing system shock loading in certain applications.

Disadvantages:

While thruster disc and drum brakes are highly versatile and effective in a range of applications, they won’t always be the best option. The external environment where the brake is being installed is critical. If there are existing hydraulic or pneumatic systems in place, it likely makes sense to consider a hydraulic brake or pneumatic brake.

Featured Projects

Products

Filter products by...
32 results
Done

Filter

Name

Type

Actuation

Maximum Torque (N·m)

Diameter (mm)

View as:
32 results

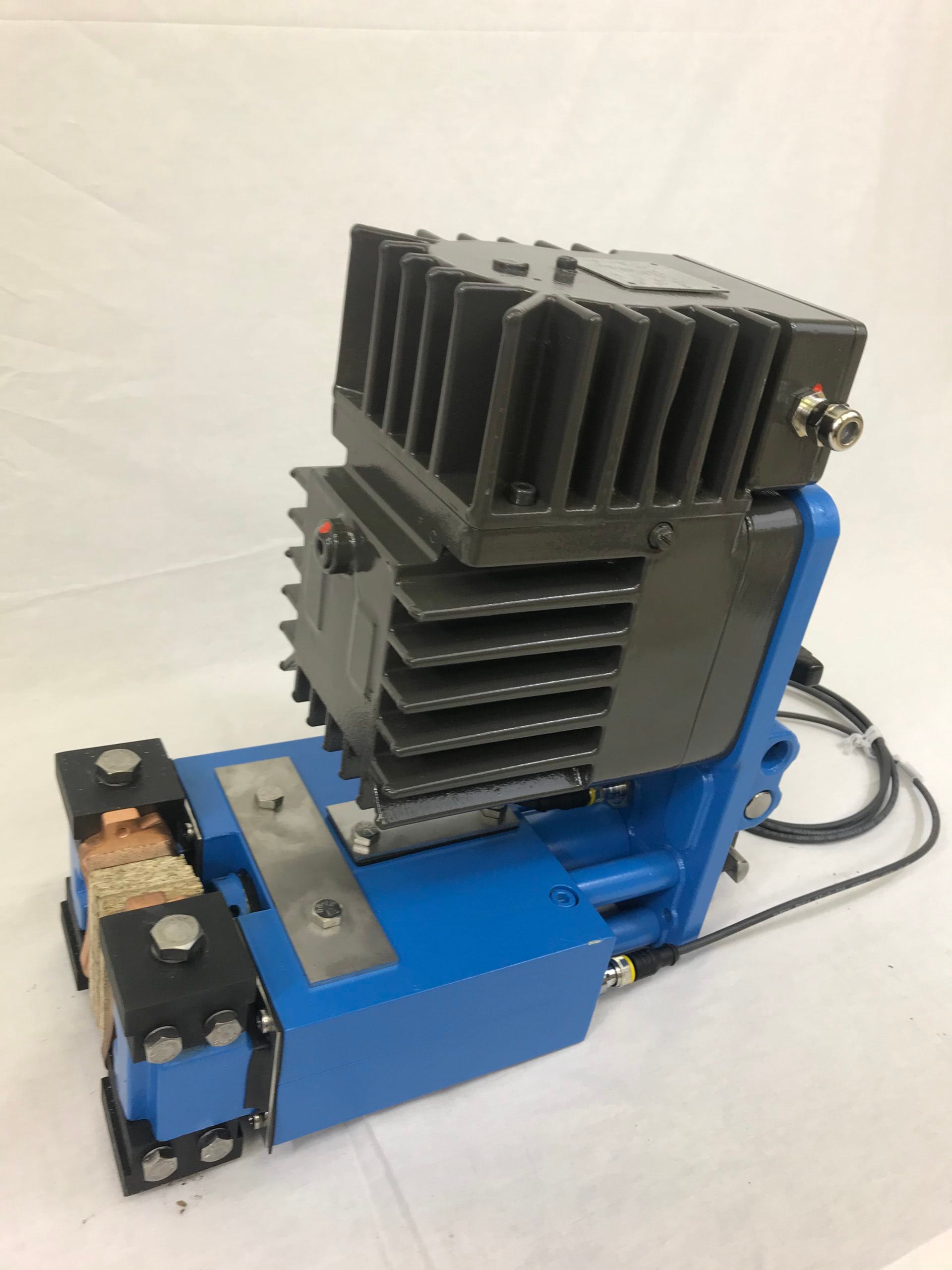

  • CB8-E-50. CB8-E-100. Electromagnetic fail-safe disc brake. Compact caliper disc brake.
    CB8-E-100-500

    Type: Disc
    Actuation: Electrohydraulic Thruster Released
    Maximum Torque: 1580 N·m
    Diameter: 500 mm

  • CB8-H-50, CB8-H-100, hydraulic compact disc brake
    CB8-H-100-500

    Type: Disc
    Actuation: Hydraulically Released
    Maximum Torque: 1580 N·m
    Diameter: 500 mm

  • CB8-M-50, CB8-M-100, electromagnetic compact disc brake
    CB8-M-100-500

    Type: Disc
    Actuation: Electromagnetic Solenoid Released
    Maximum Torque: 1580 N·m
    Diameter: 500 mm

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-100-500

    Type: Disc
    Actuation: Pneumatically Released
    Maximum Torque: 1580 N·m
    Diameter: 500 mm

  • CB8-E-50. CB8-E-100. Electromagnetic fail-safe disc brake. Compact caliper disc brake.
    CB8-E-100-400

    Type: Disc
    Actuation: Electrohydraulic Thruster Released
    Maximum Torque: 1220 N·m
    Diameter: 400 mm

  • CB8-H-50, CB8-H-100, hydraulic compact disc brake
    CB8-H-100-400

    Type: Disc
    Actuation: Hydraulically Released
    Maximum Torque: 1220 N·m
    Diameter: 400 mm

  • CB8-M-50, CB8-M-100, electromagnetic compact disc brake
    CB8-M-100-400

    Type: Disc
    Actuation: Electromagnetic Solenoid Released
    Maximum Torque: 1220 N·m
    Diameter: 400 mm

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-100-400

    Type: Disc
    Actuation: Pneumatically Released
    Maximum Torque: 1220 N·m
    Diameter: 400 mm

  • CB8-E-50. CB8-E-100. Electromagnetic fail-safe disc brake. Compact caliper disc brake.
    CB8-E-100-315

    Type: Disc
    Actuation: Electrohydraulic Thruster Released
    Maximum Torque: 910 N·m
    Diameter: 315 mm

  • CB8-H-50, CB8-H-100, hydraulic compact disc brake
    CB8-H-100-315

    Type: Disc
    Actuation: Hydraulically Released
    Maximum Torque: 910 N·m
    Diameter: 315 mm

  • CB8-M-50, CB8-M-100, electromagnetic compact disc brake
    CB8-M-100-315

    Type: Disc
    Actuation: Electromagnetic Solenoid Released
    Maximum Torque: 910 N·m
    Diameter: 315 mm

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-100-315

    Type: Disc
    Actuation: Pneumatically Released
    Maximum Torque: 910 N·m
    Diameter: 315 mm

  • CB8-E-50. CB8-E-100. Electromagnetic fail-safe disc brake. Compact caliper disc brake.
    CB8-E-50-400

    Type: Disc
    Actuation: Electrohydraulic Thruster Released
    Maximum Torque: 700 N·m
    Diameter: 400 mm

  • CB8-H-50, CB8-H-100, hydraulic compact disc brake
    CB8-H-50-400

    Type: Disc
    Actuation: Hydraulically Released
    Maximum Torque: 700 N·m
    Diameter: 400 mm

  • CB8-M-50, CB8-M-100, electromagnetic compact disc brake
    CB8-M-50-400

    Type: Disc
    Actuation: Electromagnetic Solenoid Released
    Maximum Torque: 700 N·m
    Diameter: 400 mm

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-50-400

    Type: Disc
    Actuation: Pneumatically Released
    Maximum Torque: 700 N·m
    Diameter: 400 mm

  • CB8-E-50. CB8-E-100. Electromagnetic fail-safe disc brake. Compact caliper disc brake.
    CB8-E-100-250

    Type: Disc
    Actuation: Electrohydraulic Thruster Released
    Maximum Torque: 680 N·m
    Diameter: 250 mm

  • CB8-H-50, CB8-H-100, hydraulic compact disc brake
    CB8-H-100-250

    Type: Disc
    Actuation: Hydraulically Released
    Maximum Torque: 680 N·m
    Diameter: 250 mm

  • CB8-M-50, CB8-M-100, electromagnetic compact disc brake
    CB8-M-100-250

    Type: Disc
    Actuation: Electromagnetic Solenoid Released
    Maximum Torque: 680 N·m
    Diameter: 250 mm

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-100-250

    Type: Disc
    Actuation: Pneumatically Released
    Maximum Torque: 680 N·m
    Diameter: 250 mm

  • CB8-E-50. CB8-E-100. Electromagnetic fail-safe disc brake. Compact caliper disc brake.
    CB8-E-50-315

    Type: Disc
    Actuation: Electrohydraulic Thruster Released
    Maximum Torque: 530 N·m
    Diameter: 315 mm

  • CB8-H-50, CB8-H-100, hydraulic compact disc brake
    CB8-H-50-315

    Type: Disc
    Actuation: Hydraulically Released
    Maximum Torque: 530 N·m
    Diameter: 315 mm

  • CB8-M-50, CB8-M-100, electromagnetic compact disc brake
    CB8-M-50-315

    Type: Disc
    Actuation: Electromagnetic Solenoid Released
    Maximum Torque: 530 N·m
    Diameter: 315 mm

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-50-315

    Type: Disc
    Actuation: Pneumatically Released
    Maximum Torque: 530 N·m
    Diameter: 315 mm

  • CB8-E-50. CB8-E-100. Electromagnetic fail-safe disc brake. Compact caliper disc brake.
    CB8-E-50-250

    Type: Disc
    Actuation: Electrohydraulic Thruster Released
    Maximum Torque: 400 N·m
    Diameter: 250 mm

  • CB8-H-50, CB8-H-100, hydraulic compact disc brake
    CB8-H-50-250

    Type: Disc
    Actuation: Hydraulically Released
    Maximum Torque: 400 N·m
    Diameter: 250 mm

  • CB8-M-50, CB8-M-100, electromagnetic compact disc brake
    CB8-M-50-250

    Type: Disc
    Actuation: Electromagnetic Solenoid Released
    Maximum Torque: 400 N·m
    Diameter: 250 mm

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-50-250

    Type: Disc
    Actuation: Pneumatically Released
    Maximum Torque: 400 N·m
    Diameter: 250 mm

  • CB8-E-50. CB8-E-100. Electromagnetic fail-safe disc brake. Compact caliper disc brake.
    CB8-E-50-200

    Type: Disc
    Actuation: Electrohydraulic Thruster Released
    Maximum Torque: 300 N·m
    Diameter: 200 mm

  • CB8-H-50, CB8-H-100, hydraulic compact disc brake
    CB8-H-50-200

    Type: Disc
    Actuation: Hydraulically Released
    Maximum Torque: 300 N·m
    Diameter: 200 mm

  • CB8-M-50, CB8-M-100, electromagnetic compact disc brake
    CB8-M-50-200

    Type: Disc
    Actuation: Electromagnetic Solenoid Released
    Maximum Torque: 300 N·m
    Diameter: 200 mm

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-50-200

    Type: Disc
    Actuation: Pneumatically Released
    Maximum Torque: 300 N·m
    Diameter: 200 mm

Commitment to service and support
